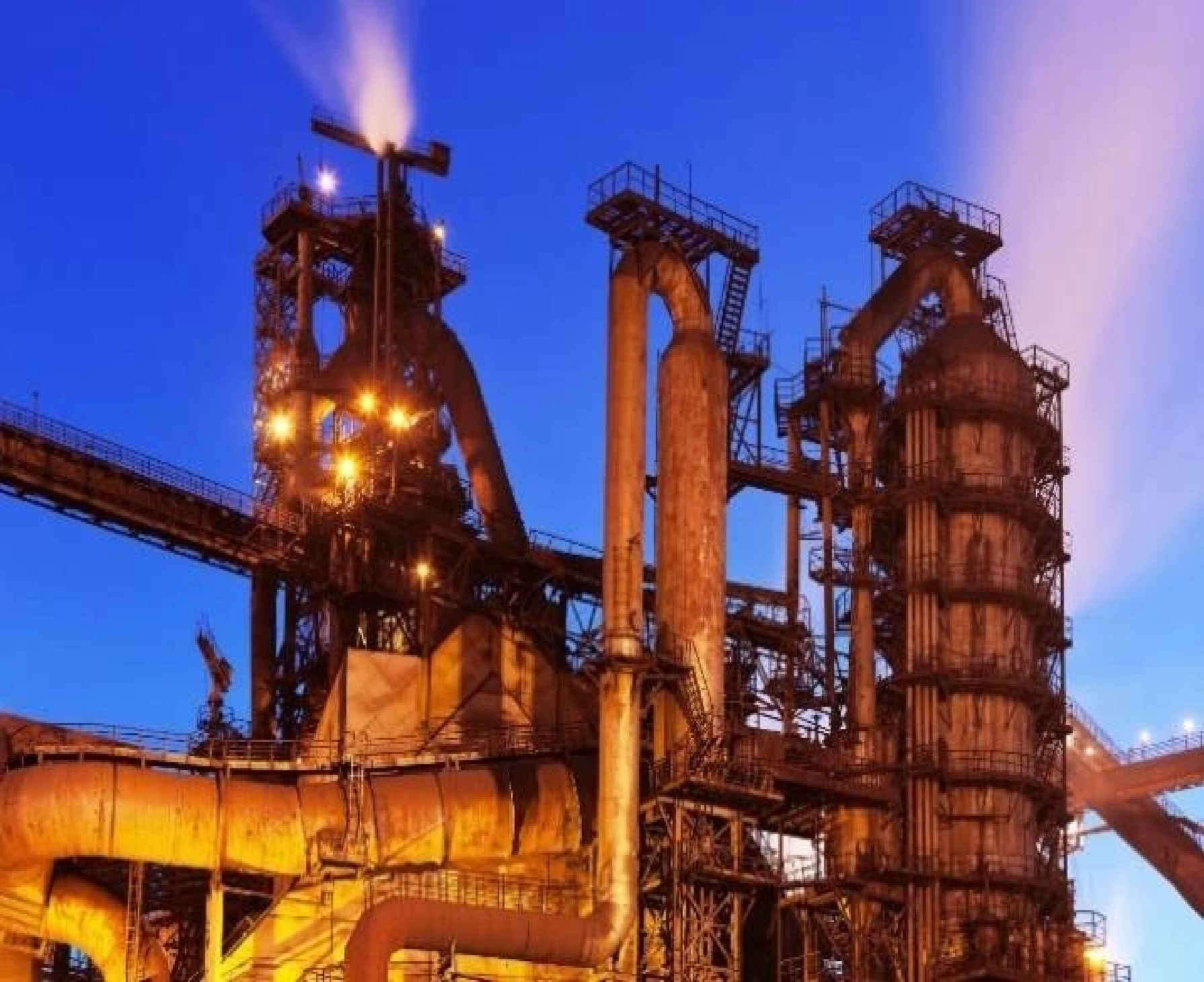

BLAST FURNACE

Designed to commissioning of Blast Furnace Complex upto 5500m3

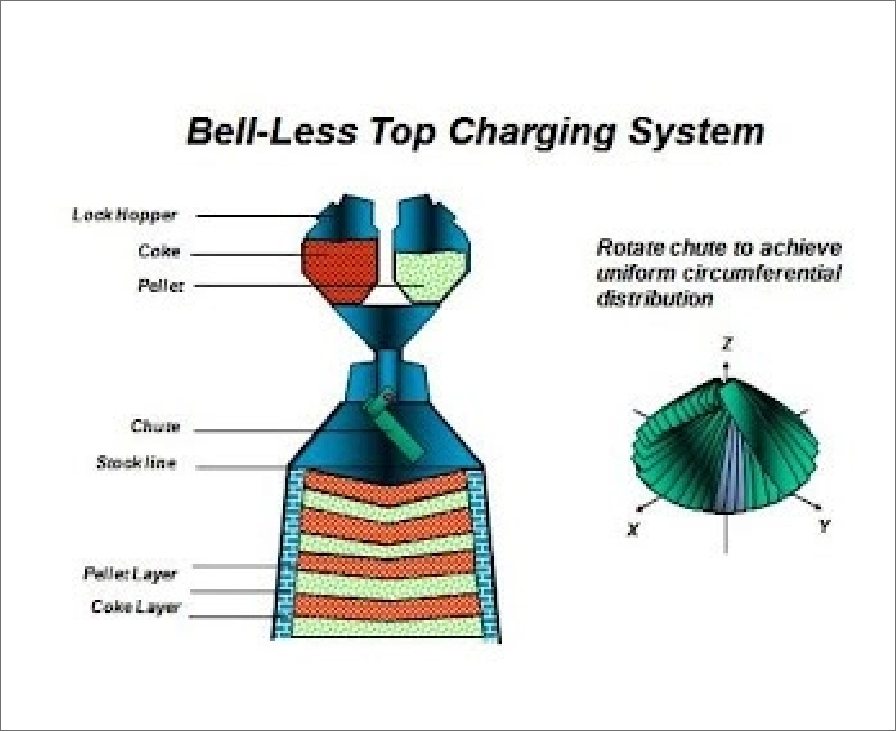

BELL-LESS TOP

Improved Furnace operational stability & efficiency loading, leading to better hot metal chemistry control.

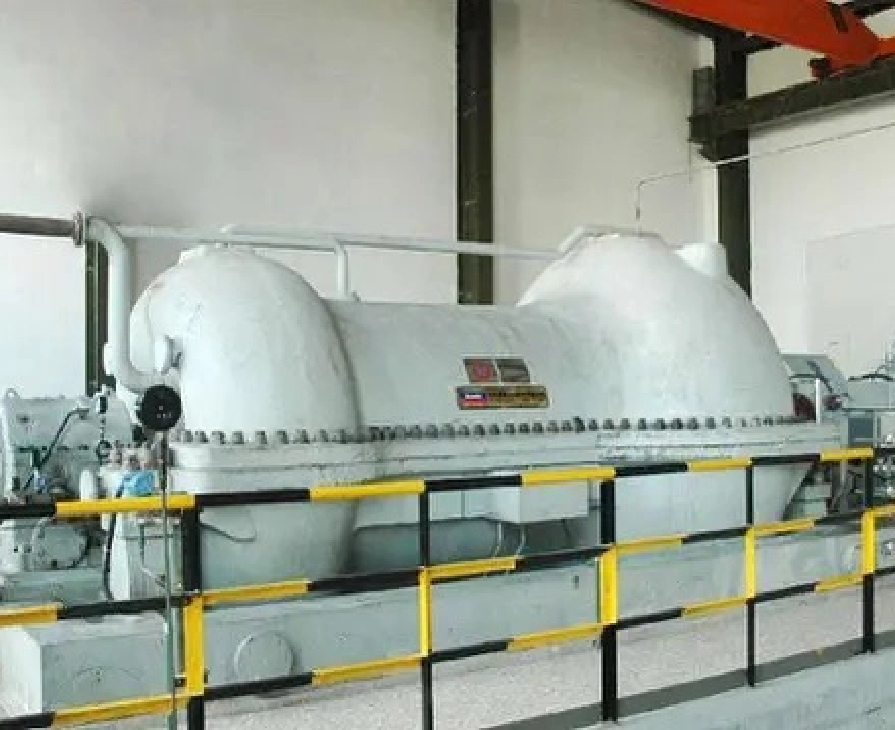

BLAST FURNACE BLOWERS

Heavy Duty machines to supply continuous flow of high-pressure blast into the Blast Furnace. The air is first compressed by blast furnace compressors and finally injected into the furnace via tuyeres.

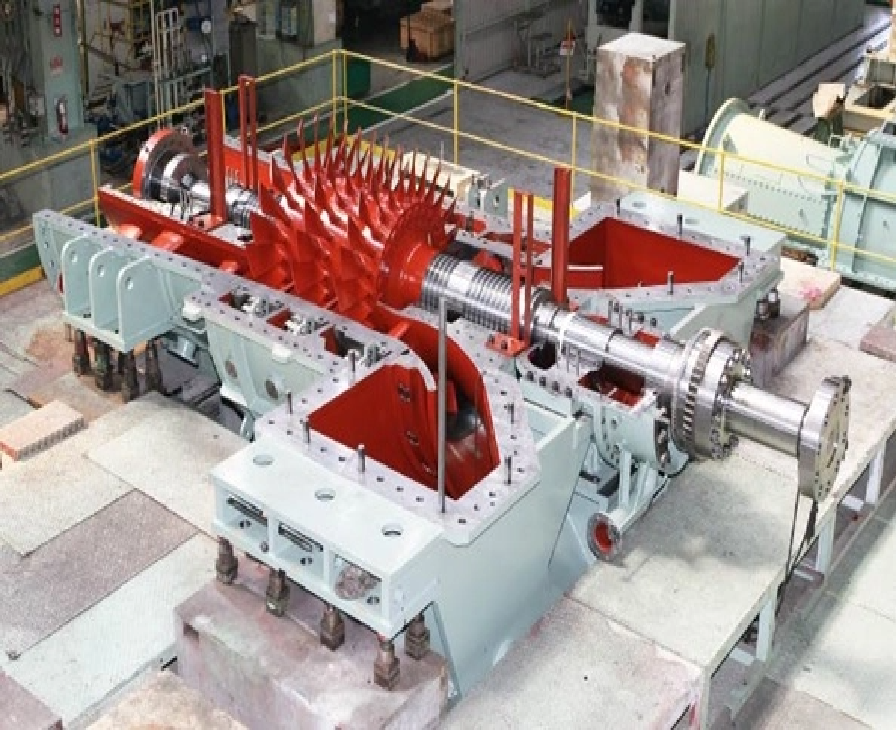

TOP PRESSURE RECOVERY TURBINE

TRT is an energy recovery system used in blast furnace to convert the high pressure furnace gas (BF Gas) into electricity. Instead of BF gas being vented, it passes through a Turbine generator, which extracts energy from the gas source.

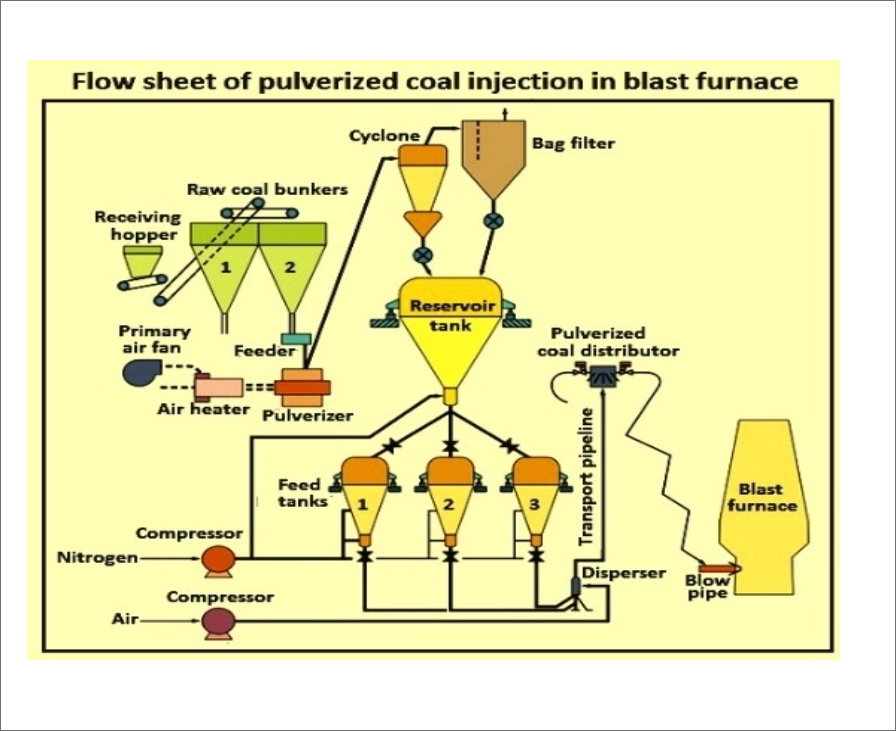

PULVERISED COAL INJECTION SYSTEM

PCI is used in blast furnace to inject finely ground coal directly into the tuyers as supplementary fuel reducing coke consumption.

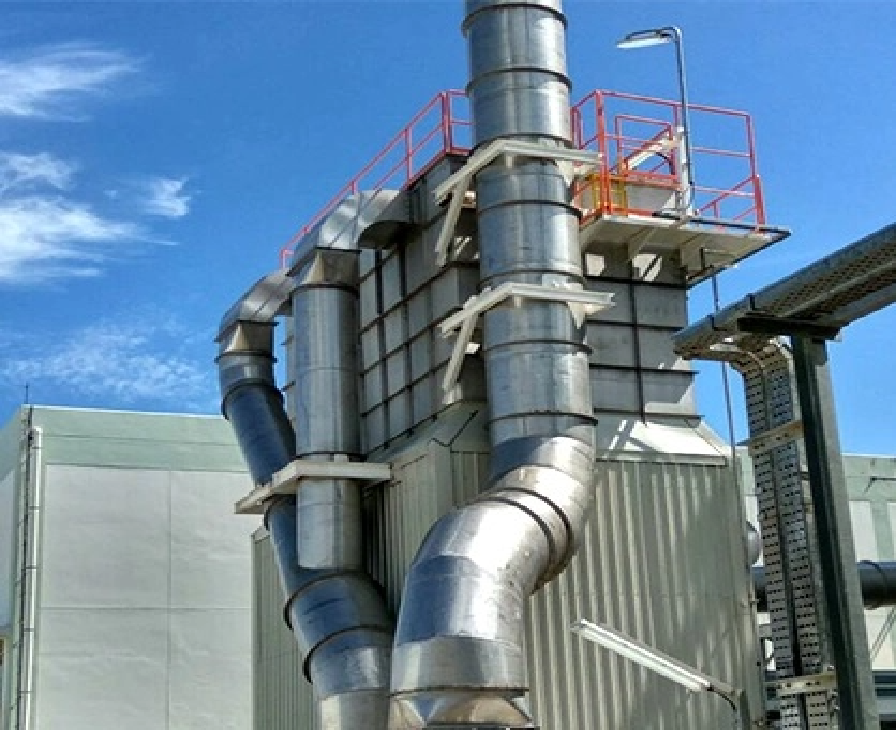

DRY GAS CLEANING PLANT

Dry Gas Cleaning Plant is used to clean the blast furnace gas before it is reused or released. It removes dust and fine particles without using water, making it more environment friendly.

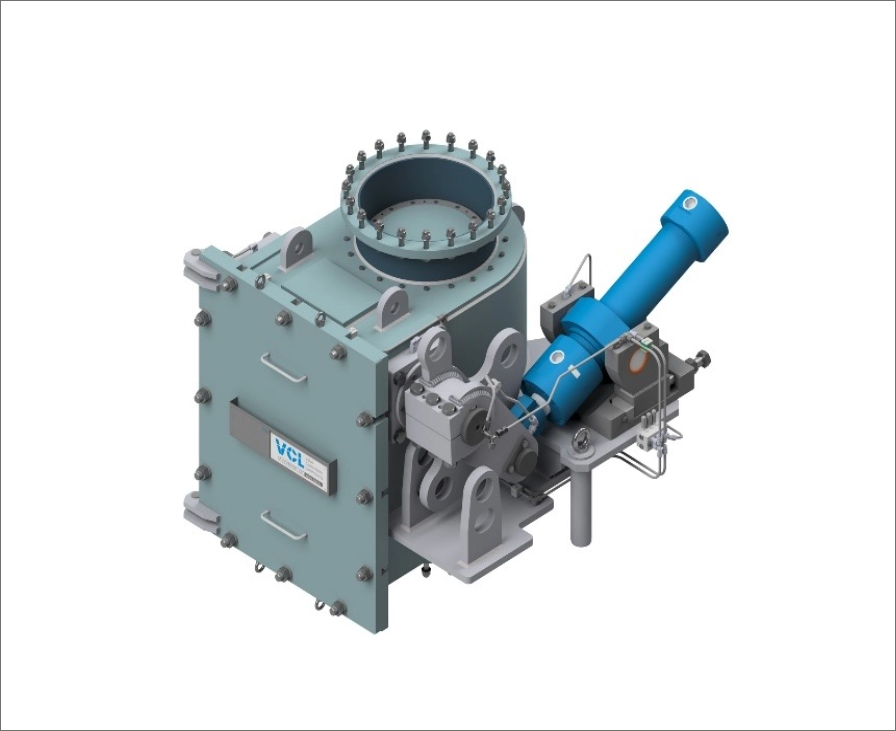

DUST DISCHARGE VALVES

Dry DCP bag filters and dust collection system is used to safely and efficiently remove collected dust from blast burnaces, converters.

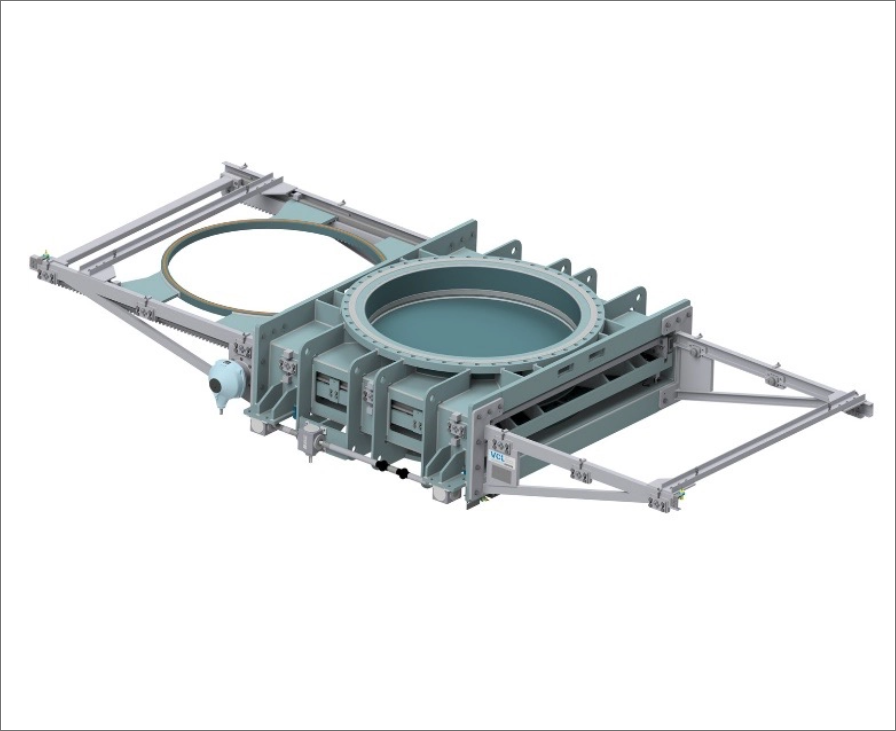

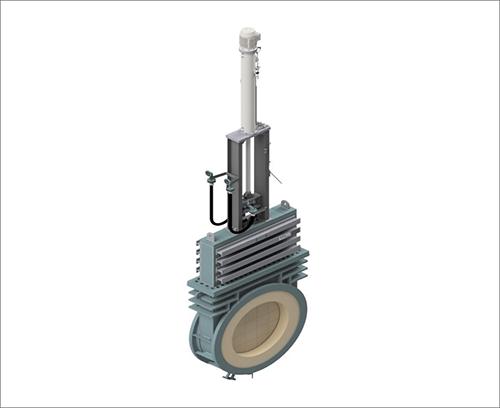

GOGGLE VALVES

Goggle Valves are used in blast burnace, gas pipelines and steel plants to provide a light shut off for maintenance and safety purposes.

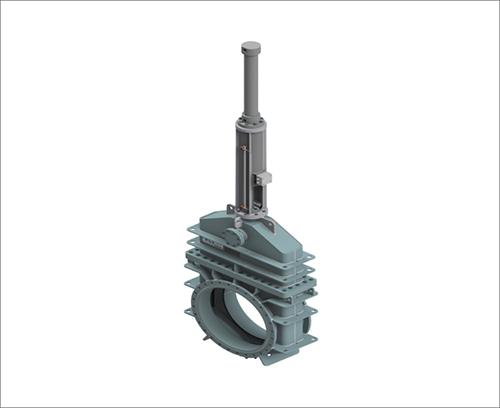

BLAST FURNACE VALVES

Blast Furnace Valves are essential for controlling the flow of air gas and materials within the Blast Furnace system.
Types of BF valves are:
1) Top Gas valves
2) Relret valves
3) Equalising valves
4) Short Valves
5) Seal Valves.

GUIDE LEVER VALVES

Lever operated Gas valves are essential components used to control the flow of gases, these valves are crucial for ensuring safe and efficient operation with various stages of steel making.

EQUALIZING AND RELIEF VALVES

Equalising valves are used in Balance pressure differences between two sections of a system used in BF to equalise pressure between the furnace top and gas cleaning system.

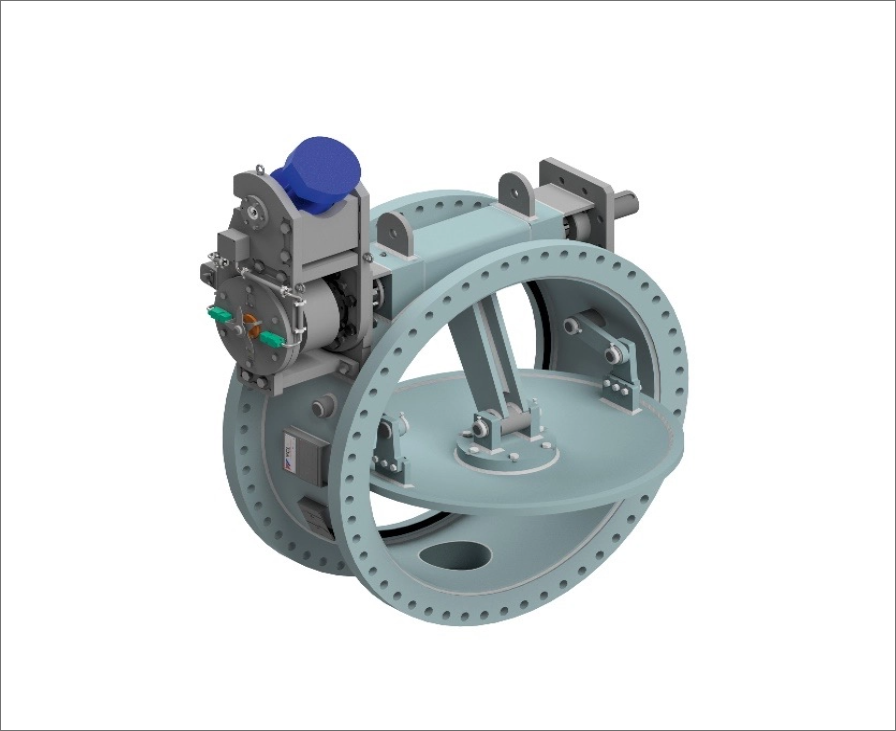

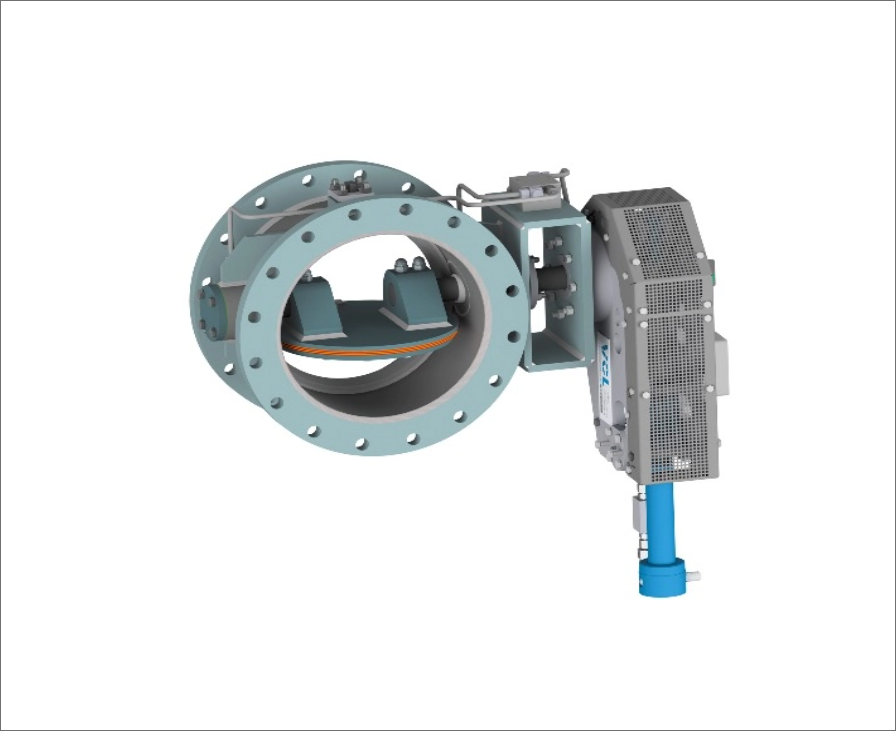

DOUBLE ECCENTRIC VALVES

Also known as double offset butterfly valves are widely used in steel plants for controlling the flow of gases, air, steam and water. They provide high sealing performance.

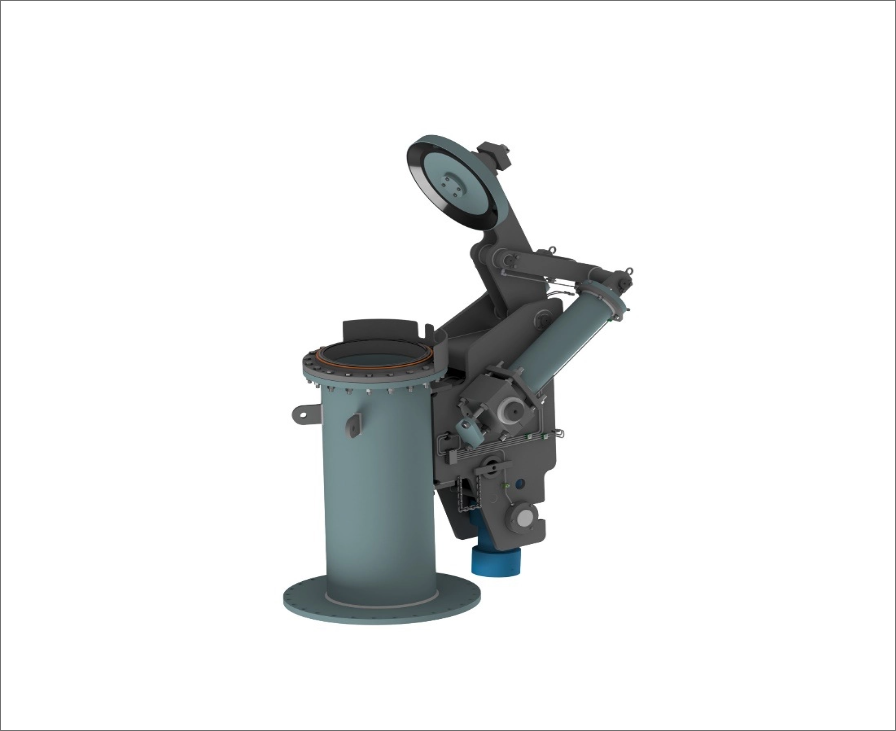

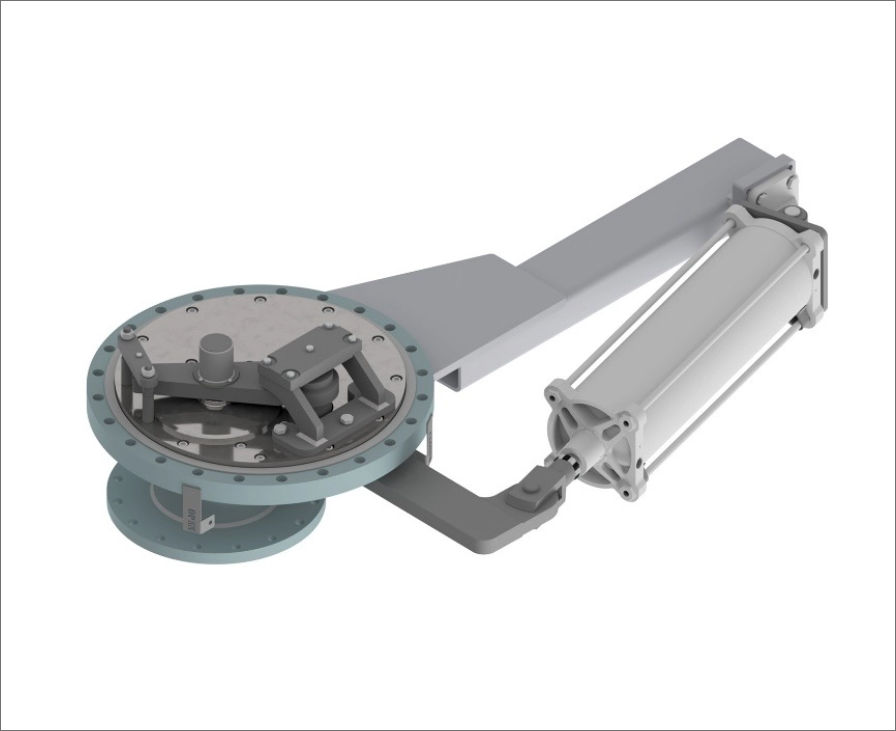

BLEEDER VALVES

Bleeder valves are safety valves used in BF and steel plants to release excess pressure or gas safely. They prevent over pressure condition.

HOT BLAST VALVES

is a crucial component used to regulate the flow of gas,
air and materials within the BF system.
Types of Hot Blast Valves
1) Hot Blast Main valves
2) Branch Hot Blast Valves
3) Shut off Valves
4) Throttling Valves

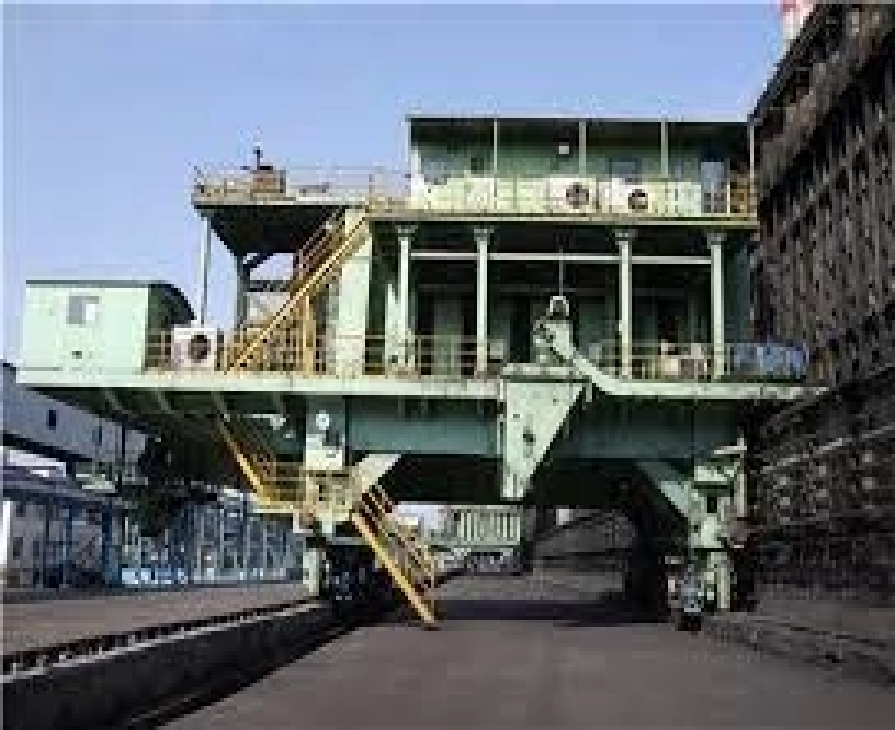

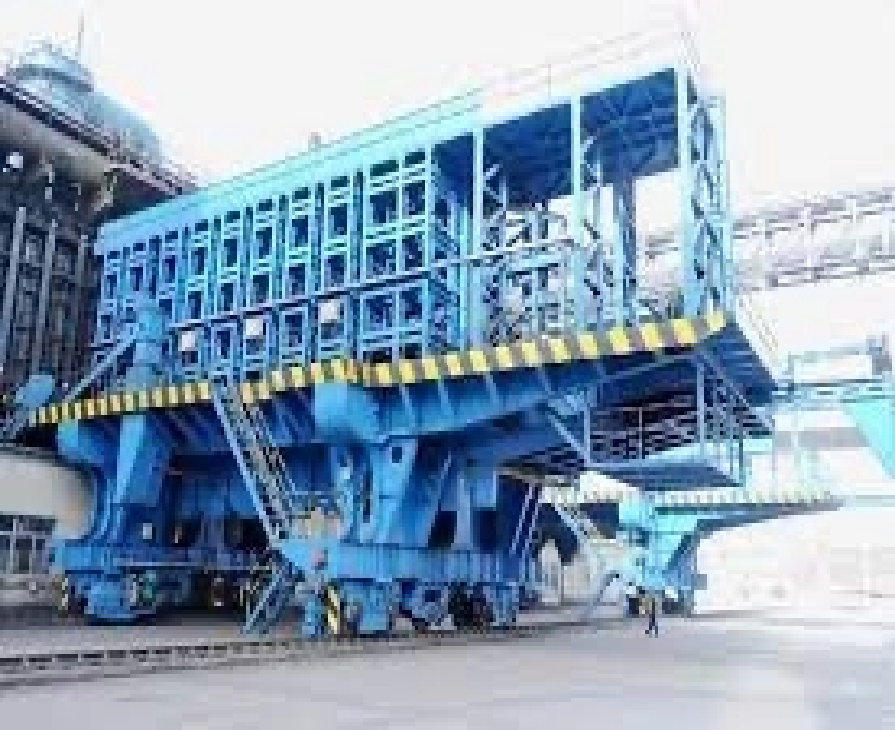

COKE CHARGING CAR

is a specialised rail mounted vehicle used in coke-ovens to charge coal into coke oven chambers for carbonisation.

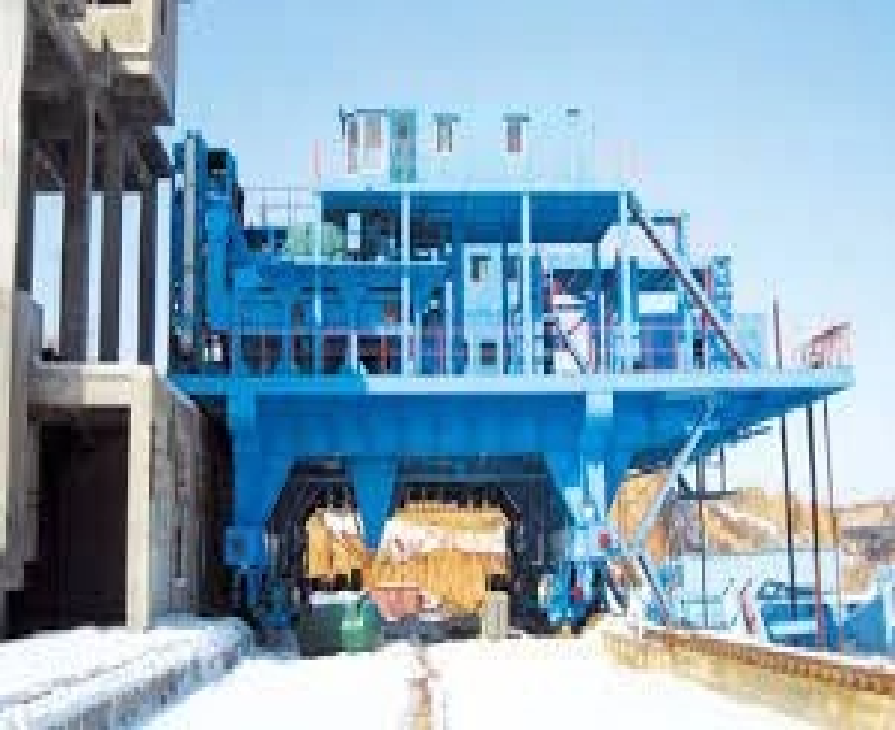

COKE PUSHER

This equipment is used for coke oven battery for pushing out hot coke from oven chamber after carbonisation.

COKE OVEN MACHINES

They are specialised equipment used in coke production for charging, pushing and handling coke in a coke oven battery.
Type of Coke Oven Machine:
1) Coke Charging Car
2) Coke Pusher Car
3) Coke Guide Car
4) Quenching Car
5) Door Extractor Machine

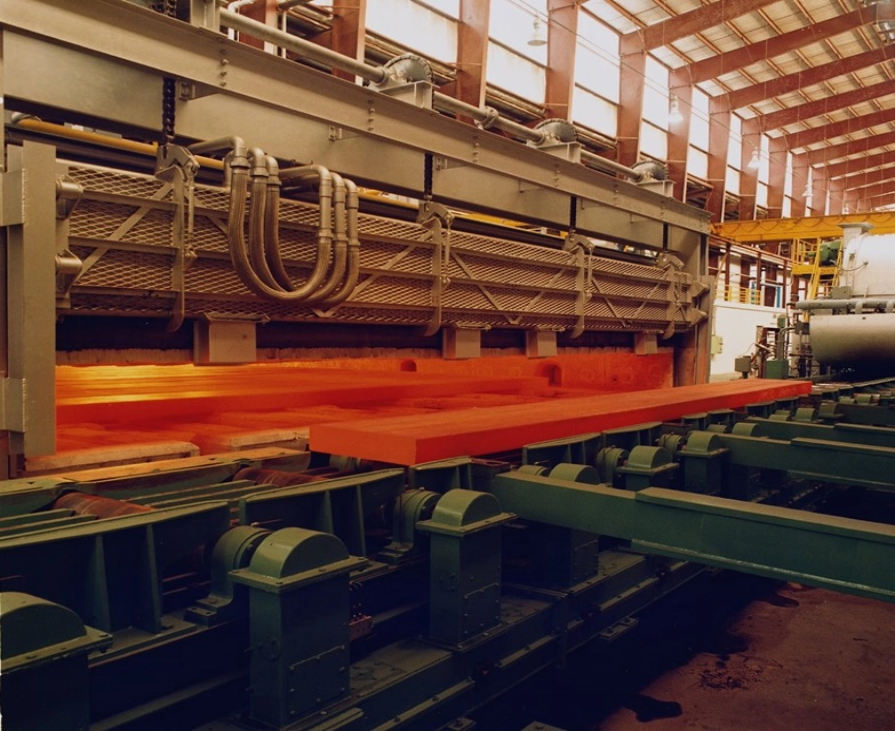

LONG PRODUCT ROLLING MILL

This is a type of steel rolling mill for long steel products such as rebars, wire rods, sections (angles and channel beams) and special profiles.

FORGED / CAST ROLLS

Rolls are components in Rolling Mills, responsible for shaping and reducing the thickness of metal during rolling. We can offer both forged and cast rolls depending on application.

CAST HOUSE MACHINERIES

These are special machines to handle Iron ore slag after they are extracted from the Blast Furnace, separated and directed for further processing. Taphole Drilling Machine, Mud Gun machine, Tilting Runner and Trough Cover Manipulator are important machines in this category.

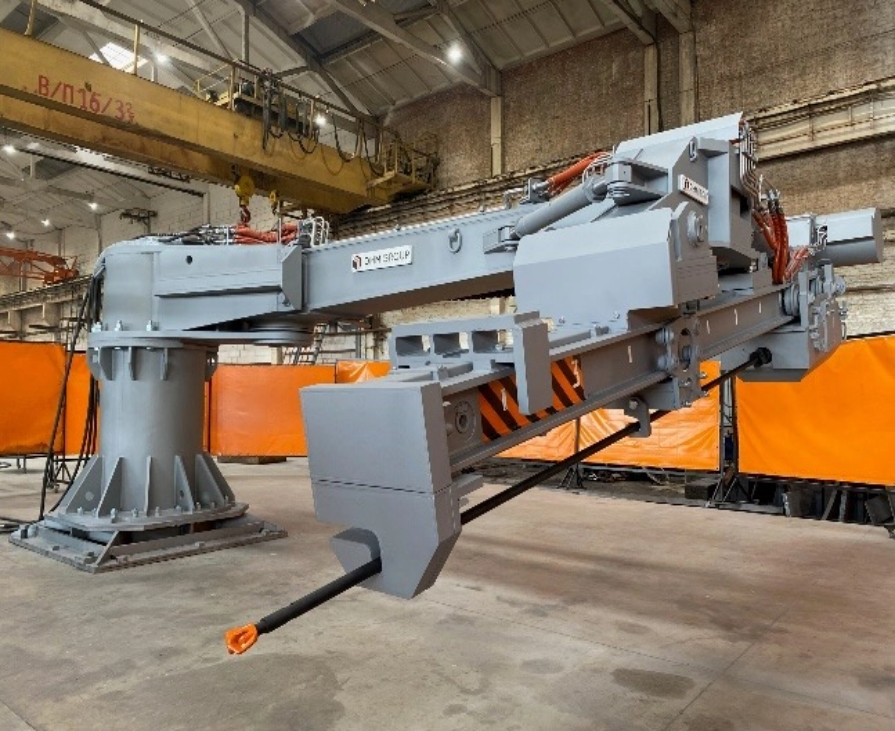

TAPHOLE DRILLS

These are machines used in blast furnaces, electric arc furnaces (EAFs) and smelting furnaces to drill and open the tapholes, allowing molten metal and slag to be discharged.

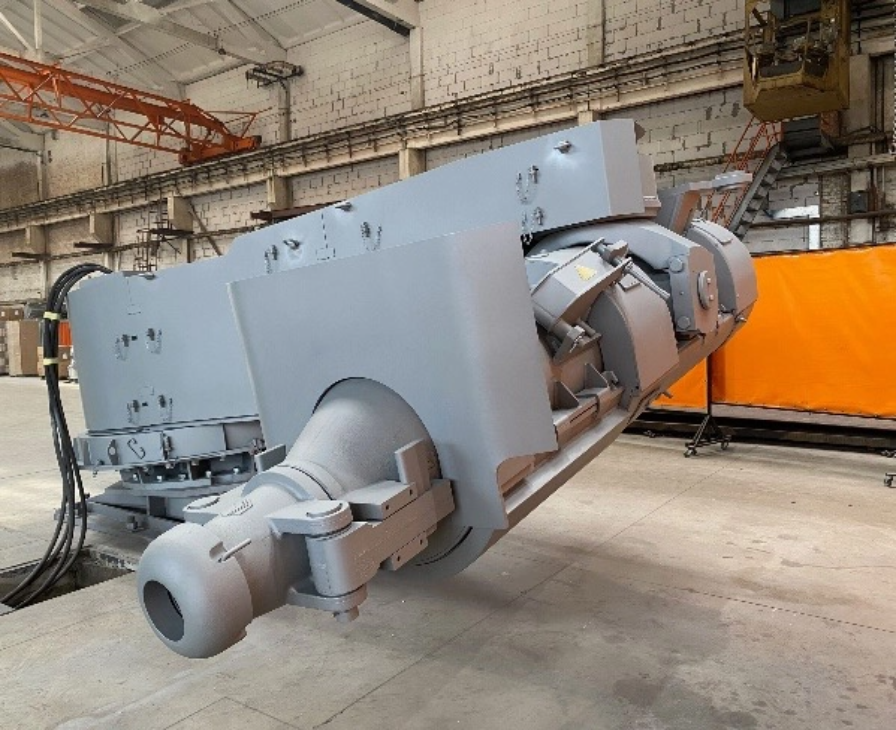

MUD GUN MACHINES

A Mud Gun machine is an equipment used in blast furnace and smelting furnaces to plug (seal) the tapholes after molten metal and slag have been tapped.

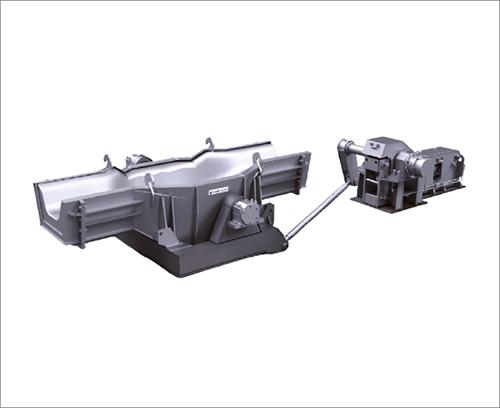

TILTING RUNNER

This is a pivotal component in Blast furnace cast houses, designed to efficiently and safely divert molten iron from the furnace to transport vehicle.

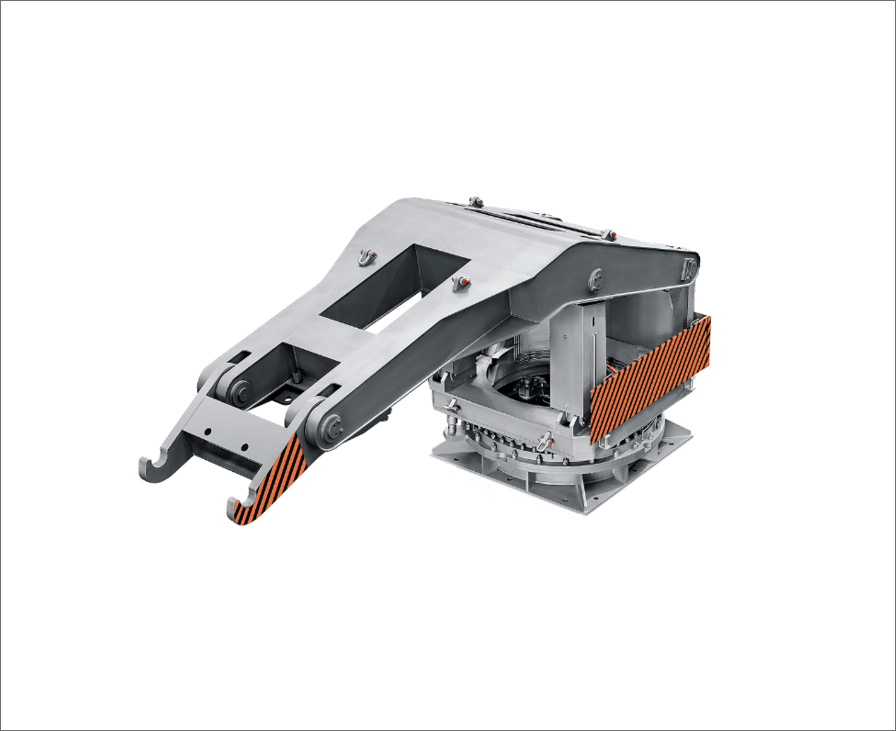

TROUGH COVER MANIPULATOR

designed to manage the removable covers over the main and subsidiary tapholes. These covers serve to minimise heat loss from modern iron.

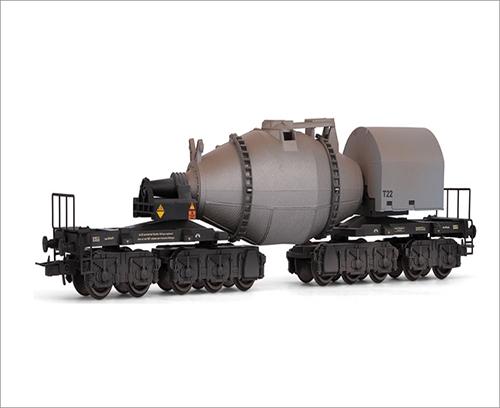

TORPEDO LADDLE CAR

Torpedo Laddle Car is a specialised rail mounted transport vessel used in steel plants to transfer molten iron from Blast Furnace to the steel making shop (BoF or EAF).

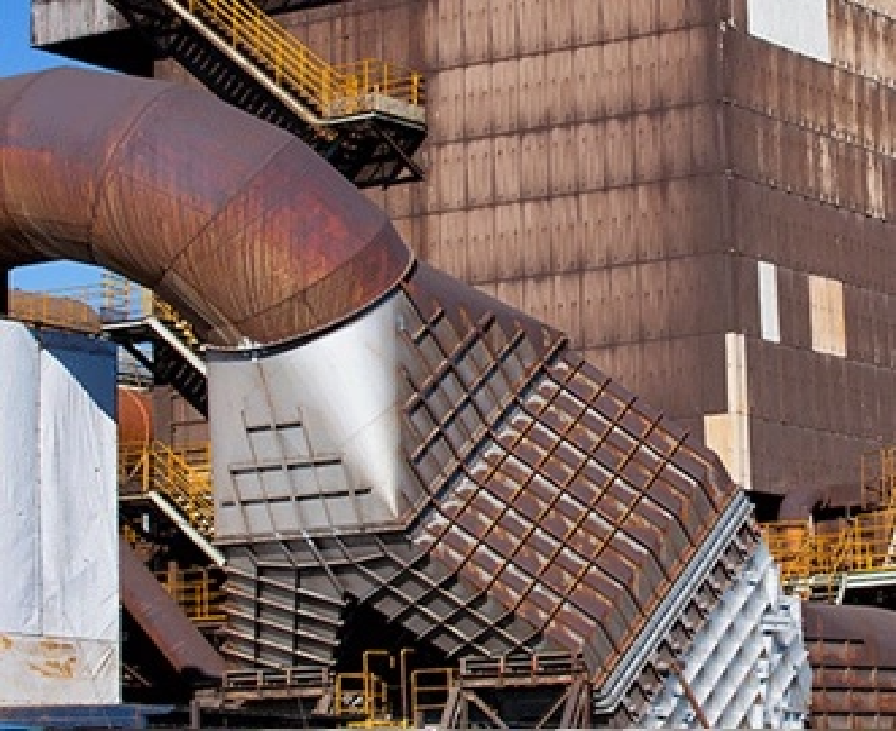

SINTER PLANT EXHAUSTER

Sinter Plant Exhauster used in sintering process for handling exhaust gases from the sinter bed.
